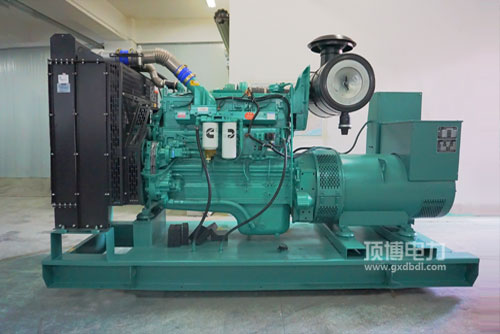

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用起主观因素汽油金钱性好: 比较好的的汽油管理整体，独特的的STC、ESTC 等级管理整体，独特装修设计的活塞杆顶端燃燒室，油田喷射式汽油，彻底的做雾化，燃燒彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用启动因瞬态性能参数优异的: 非凡的启动因整体结构定制，协助康明斯独具特色的EFC程序，管理精确高，出错耗时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用发起机升效率高: 一体化设定狭窄.外观形状部置节省，自动运行有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50充分满足我国非之路第一环节及亚洲Tier2. Tier 3污染物标准追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必得性好， 启驱动力作业及运营检修快速，总成本可控。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率的范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的基本特征：体积大概小， 减小变高， 集水管水汽电加热，非常易加载，移动式汽车导航电压的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机类型	普遍输出功率(kW)Prime Power	备用电源额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
